Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Packing: | 1 PC/Carton | Warranty: | 1 Year |
| Drawtube: | Trinocular | Theory: | Metallurgical Microscope |
| Lead-time: | 15-20 Work Days | Supply Ability: | 1000 PCS/Month |
| Eyepiece: | PL10X | Application: | Industrial Inspection |
| Magnification: | 50X-1000X | Illumination: | Transmission And Reflection |
| Viewing Head: | Trinocular Head | Objective: | Infinity Plan Achromatic Objectives |
| High Light: | Digital transmission optical microscope,10000X transmission optical microscope,5000X reflected and transmitted light microscope |
||

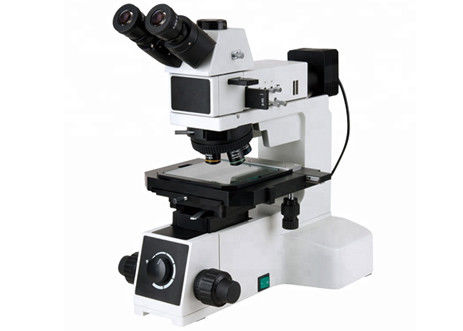

Metallographic Analysis Optical 1000X 5000X 10000X Digital Polarizing Metallurgical Microscope
M14104 Metallographic Analysis Optical 1000X 5000X 10000X Digital Polarizing Metallurgical Microscope. M14104 is a research microscope with optional observation method Bright field/dark field/polarizing/DIC and widely used in various industrial area.
Features:
- Infinity plan achromatic objectives make the image clear, sharp and in high contrast.
- It is suitable for PCB cross section analysis, layer thickness measurement, LCD checking, metal or nonmetal material analysis etc.
| Item | Description / Value |
| Optical system: | Chromatic aberration correction infinity optical system |
| Observation method: | Light field / inclined illumination / polarized light/DIC |
| View tube: | 30°hinge type ternary,splitting ratio, binocular: ternary=100:0 or 50:50 |
| Objective: | LMPL infinity long working distance metallurgical objective 5X, 10X, 20X, 50X, 100X |
| Nosepiece: | 5 hole introversive type converter with DIC slot |
| Stage: | 4”Double mechanical mobile platform, Travel 105x 105mm, With metal plate platform, Right X and Y move the handwheel, Equipped with platform interface |
|
Reflect illuminator System: |
With variable view of aperture and aperture, adjustable center; With color filter slots and polarization device slot; With oblique lighting switch lever. Single high power LED 5 w, white, light intensity continuously adjustable |
