Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Lead-time: | 15-20 Work Days | Supply Ability: | 1000 PCS/Month |
| Packing: | 1 PC/Carton | Warranty: | 1 Year |
| Drawtube: | Binocular | Theory: | Video Microscope |
| Highlight: | USB Dark Field Microscope,100X/1.25 Dark Field Microscope,Binocular live blood microscope |
||

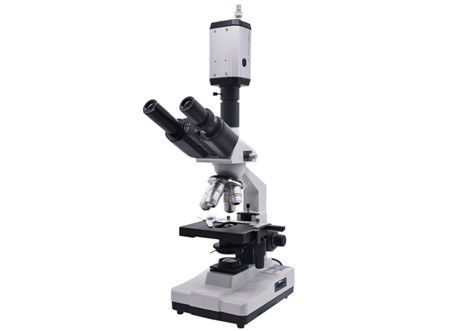

USB Video Biological Dark Field Live Blood Microscope
M18101 USB Video Biological Dark Field Live Blood Microscope is a live blood dark field microscope which needs an additional dark field condenser to complete its function. The dark field condenser has to be set first when the operator tests live blood. Then, the dark field condenser has to be replaced by the bright field one to observe dry blood. The operational procedure is a little complex in normal. However, our microscope can display a very clear image easily by switching between the dark field and the bright field. There is an adjustor ring under the condenser of the microscope. The adjustor ring puts in the Position A when starts to observe the live blood. We simply turn the adjustor ring to Position B to test dry blood under the bright field. The whole procedure is very easy and more convenient.
Features:
- Professional manufacturer of photoelectric and medical equipment.
- The TV, computer, projector and other equipment can be connected based on open design to facilitate teaching and demonstrating.
- Powerful microscopic image acquisition system software specialized for animal hospitals.
- The use of advanced digital hardware enriches amplification, image clarity and color.
| Item | Description / Value |
| Camera: | 1/3 SONY CCD |
| Camera image sharpness: | ≥ 480 lines |
| Eyepiece: | WF10X |
| Objective: |
4X 10X/0.25 40X/0.65 100X/1.25(oil) |
| Converter: | dumping four-hole, ball bearings positioning |
| Stage: | Double layers mechanical stage two biopsy forceps |
| Focusing: | coaxial coarse and fine focusing ,Triangular steel column rails, move more smoothly |
| Condenser: | N.A.1.25 Oil (Abbe condenser, numerical aperture 1.25), iris diaphragm, adjustable condenser Center |
| Illumination: | Cora lighting, halogen lamps, brightness adjustable |
| Power Supply: | switching power supply, wide voltage |
| Gross weight: | 8.62kg |
| Size of the package: | 51.5*37*29cm |
